ACP Chat Usage

Functionality

ACP Chat allows you to converse with a configured ACP backend, with conversation context drawn from the Zotero item you are currently viewing or the paper in the reader.

Use Cases

• Literature Q&A: Ask questions about the paper you are currently reading, get explanations and summaries
• Writing Assistance: Get suggestions during the writing process
• Quick Lookup: Quickly retrieve key information about a specific paper
• Batch Processing: Perform batch analysis on multiple items in a literature list

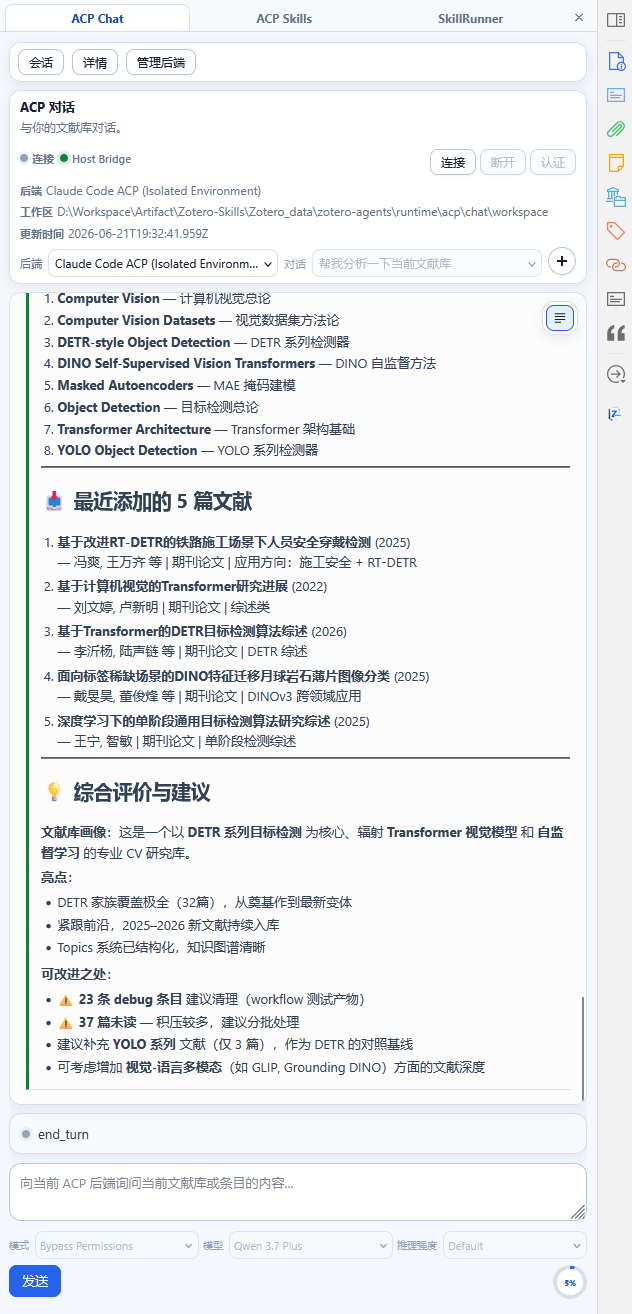

Interface Layout

The ACP Chat panel contains the following areas:

┌──────────────────────────────────────────┐
│  Banner                                  │
│  Backend ▼  |  Session ▼  | [Connect] [＋] │
│  Status:   ● Connection | ● MCP | ● HostBridge  │
├──────────────────────────────────────────┤
│  ← Session Drawer  │  Transcript View  │  Details →  │
│                    │  [Toggle Plain/Bubble]    │
│  Backend A         │  Conversation messages... │
│  ├─ Session 1      │  Plan Component           │
│  └─ Session 2      │  Prompt Component         │
│  Backend B         │  Reply Area               │
│  └─ Session 3      │  Text input + Send/Cancel │
│                    │  Mode ▼ | Model ▼ | Reasoning ▼│
│                    │  ⭕ Usage 12.3k/200k   │
└──────────────────────────────────────────┘

Banner

The Banner is at the top of the panel, providing core control functions:

Backend Selection

A dropdown lists all configured backends, each showing a status suffix (Connecting/Connected/Disconnected). Switching backends automatically switches to that backend's session.

Session Selection

A dropdown shows the most recent 8 sessions (sorted by time); selecting one switches to that session. When there are more than 8, "Show more..." appears at the bottom; clicking it opens the session drawer to view the full list.

Connection Controls

• Connect/Disconnect Button: Manually manage the current backend's connection state
• Auth Button: Shown when the backend requires authentication
• New Session (＋): Create a new session on the current backend

Status Indicators

The right side of the Banner shows three status indicator lights:

Indicator	Description
● Connection	Connection status with the ACP backend (green=Connected/gray=Disconnected/yellow=Connecting)
● MCP	MCP service availability
● Host Bridge	Zotero Host Bridge connection status (see below)

Host Bridge Status

Host Bridge is an internal bridge channel between the Zotero plugin and the backend. It is responsible for passing the current Zotero context (selected items, paper in the reader, library data, etc.) to the backend, enabling the AI to operate based on your actual Zotero data.

Host Bridge communicates through the zotero-bridge CLI tool; the plugin manages its lifecycle automatically in the background.

Status	Meaning
Green ●	Host Bridge is connected; the backend can access Zotero context
Yellow ●	Connecting or reconnecting
Gray ●	Host Bridge is unavailable (not installed or not started); the backend cannot obtain Zotero context
Hidden	Host Bridge is not needed currently (e.g., backend doesn't support it or context features are not enabled)

When Host Bridge is unavailable, ACP Chat can still function normally, but the AI cannot access information about the paper you are currently viewing as context.

Session Drawer (Left)

The left drawer displays all historical sessions grouped by backend. Each session entry shows a title and last active time.

• Switch Session: Click a session in the list to load it
• New Session: Operate from the top of the drawer or the Banner

Transcript View

Conversation Messages

Conversation messages support Markdown rendering, including:

• Code Blocks: With syntax highlighting and a copy button
• Math Formulas: LaTeX formulas rendered with KaTeX
• Lists, Tables, Links, and other standard Markdown elements

Tool Calls

When the AI invokes a tool, a tool call entry is displayed in the transcript:

• Tool name badge
• Input parameter summary
• Execution status LED (waiting/in-progress/completed/failed)
• In Bubble mode, consecutive tool calls are automatically collapsed into a "tool activity group"

Thinking Process

The AI's reasoning process is displayed as a separate "Thinking" block, distinct from the formal reply.

Display Mode Toggle

The toggle button in the top-right corner lets you switch between two modes:

Mode	Description
Plain	Messages are colored by role on the left border, suitable for browsing long conversations
Bubble	Messages are displayed in bubble style, consecutive tool calls are automatically grouped, suitable for reading

Plan Component

When a conversation includes a multi-step plan, a plan progress bar is displayed above the transcript, marking completed, in-progress, and pending steps.

Prompt Component

The prompt component is displayed when user interaction is required:

• Permission Requests: When the backend needs Zotero access permissions, shows request details and approval buttons
• Connection Prompt: When disconnected, shows a reconnection suggestion
• Error Prompt: Shows error information and recovery actions

Reply Area

Text Input

• Multi-line Text Box: Supports long text input
• Enter to Send: Press Enter to send a message
• Shift+Enter for Newline: Insert a line break
• Reply History: Press up/down arrow keys to browse sent messages

Run Mode

Above the reply area you can select:

Option	Description	Available Values
Mode	Run mode	Defined by the backend
Model	AI model	List of models supported by the backend
Reasoning Effort	Reasoning effort level	Low/Medium/High (if supported by the backend)

Usage Meter

A circular usage meter is shown in the bottom-right corner of the reply area:

• Outer Ring: Percentage of current session token usage against the limit
• Text: Used k / Limit k
• Color changes with usage level (Normal → Warning → Critical)

Keyboard Shortcut Hints

Keyboard shortcut hints are displayed inside the input box.

Details Drawer (Right)

The right drawer displays detailed information about the current session:

Area	Content
Session Info	Session ID, creation time, last active time
Backend Info	Backend type, address, model
Workspace Path	Session workspace file path
Diagnostics	Debug and diagnostic data

Library Context vs Reader Context

ACP Chat supports two context modes; the plugin automatically detects the current context type and passes it to the backend:

Mode	Description	Use Cases
Library Context	Based on items currently selected in the Zotero item list	Quick reference while browsing the library
Reader Context	Based on the full text of the paper currently open in Zotero Reader	Contextual understanding needed during deep reading

Session Management

• Conversation history is automatically persisted
• Multiple sessions per backend are managed independently
• Historical sessions can be viewed in the Dashboard or sidebar
• Backend-grouped session list is supported

Notes

• An ACP backend must be configured first
• Conversations on different ACP backends do not interfere with each other
• Conversations are associated with Zotero items for easy later reference
